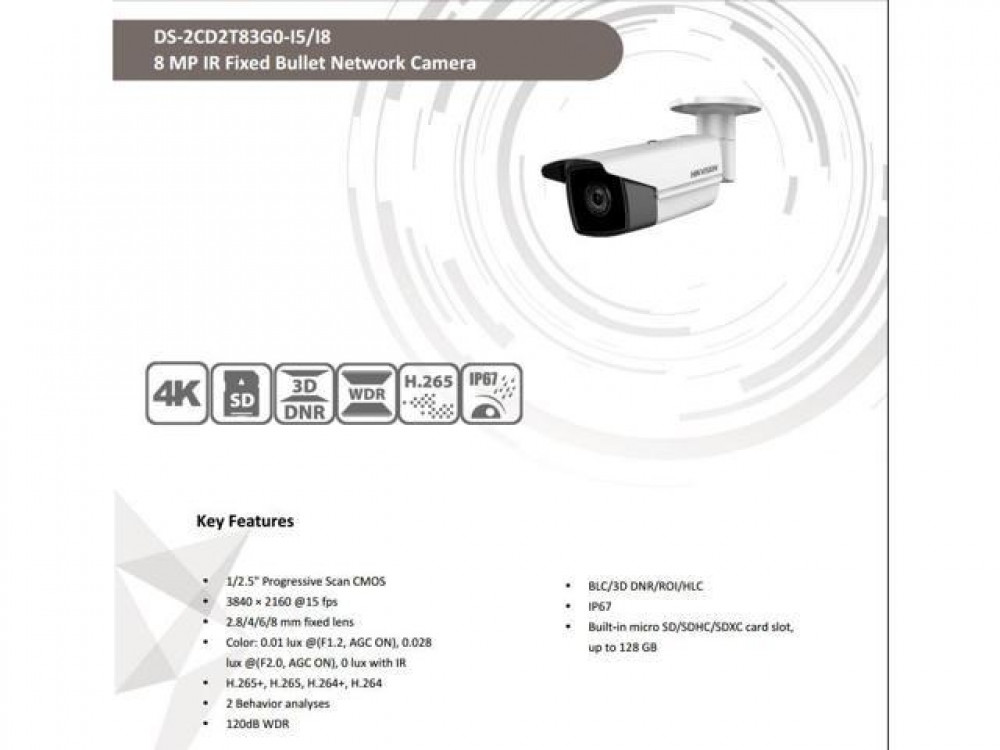

Camera Specifications:
Image Sensor: 1/2.5" Progressive Scan CMOS
Minimum Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Wide Dynamic Range: 120dB
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens:
- Focus: Fixed
- Lens Type: Various options available (2.8/4/6/8 mm)
- Aperture: F2.0
- Lens Mount: M12
Illuminator:
- IR Range: Up to 50 m (I5), Up to 80 m (I8)
- Wavelength: 850 nm
Video:
- Max. Resolution: 3840 × 2160
- Main Stream: Multiple frame rates and resolutions
- Sub Stream: Multiple frame rates and resolutions
- Third Stream: Multiple frame rates and resolutions
- Video Compression: H.265/H.264
Network:
- Simultaneous Live View: Up to 6 channels
- API: ONVIF, ISAPI, SDK, Ehome
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, and more
- User/Host: Up to 32 users, 3 levels of access
Network Storage:
Support for micro SD/SDHC/SDXC card (128G), NAS (NFS/SMB/CIFS), ANR
Client: Various software options available
Web Browser: Compatible with multiple browsers
Image:
- Day/Night Switch: Day/Night/Auto/Schedule
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Adjustable settings via software or web browser
Interface:
- On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Communication Interface: 1 RJ45 10M/100M Ethernet port
Event:
- Basic Event: Motion detection, video tampering alarm, exceptions
- Smart Event: Line crossing detection, intrusion detection, face detection
General:
Various functions like anti-flicker, heartbeat, privacy masks, etc.
Operating Conditions: -30°C to +60°C, humidity 95% or less
Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption: Varies by model
Camera Dimension: Φ 104.8 × 299.7 mm
Protection: IP67
