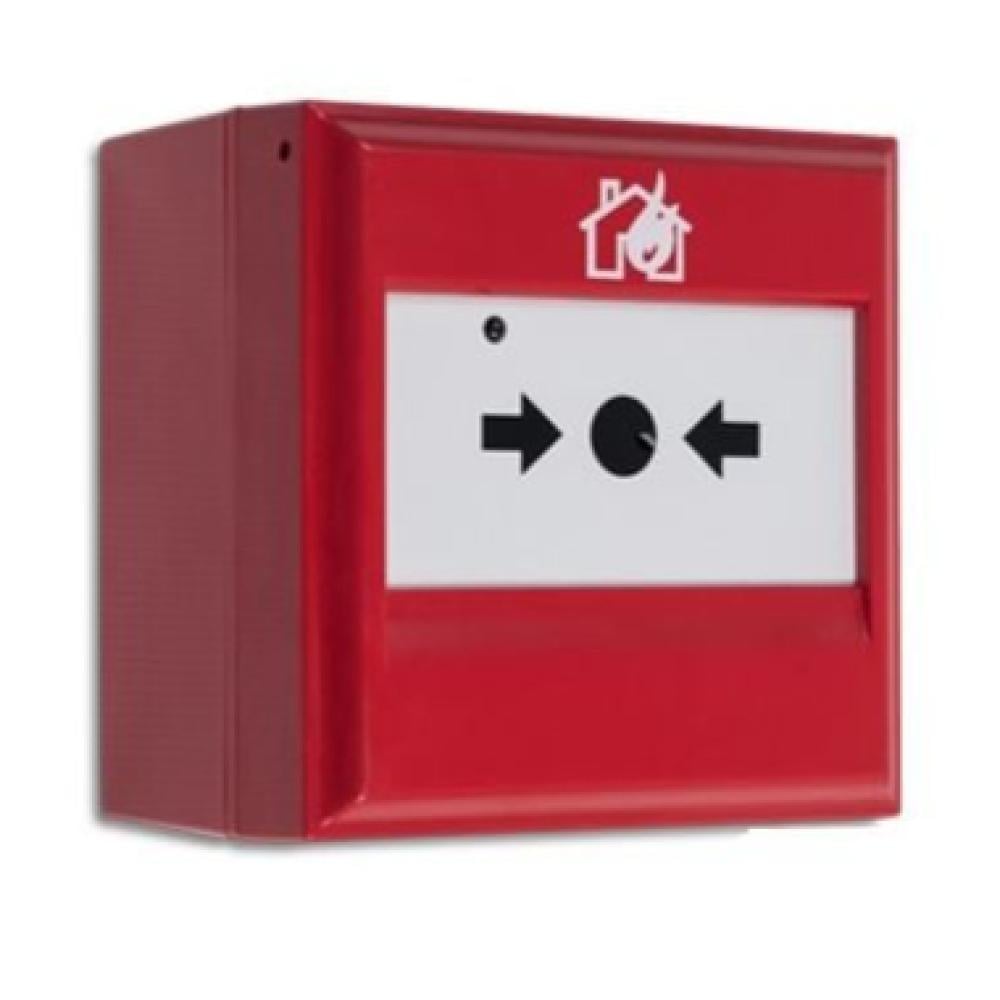

GST DI-9204E Digital Manual Call Point (MCP) is suitable for public places. When there is a fire, pressing the frangible element on this MCP can send fire signal to fire alarm control panel. After receiving the signal, the control panel will show address information of the MCP and generate alarm sound.

Features

• Re-settable (non-breaking glass) via special key
• Wiring before termination
• Electronically addressed
• Alarm by pressing
• Plug-in structure
• UL listed

Specifications

• Product: Manual Call Point
• Brand: GST
• Model: DI-9204E
• Operating Voltage: 24VDC
• Standby Current: ?0.6mA
• Alarm Current: ?1.8mA
• Indicator: Red. Flashes every 3s normally. Steadily Illuminates after alarming.
• Type of Initiating: Part Reusable
• Initiating Mode: Pressing the frangible element manually
• Resuming Mode: Manually resumed by a special key
• Programming Mode: Electronically addressed
• Address Range: Occupying one address, selectable within 1?242.
• Wiring: Polarity-insensitive two-wire
• Ingress Protection Rating: IP43
• Environmental Temperature: -10?? +50?
