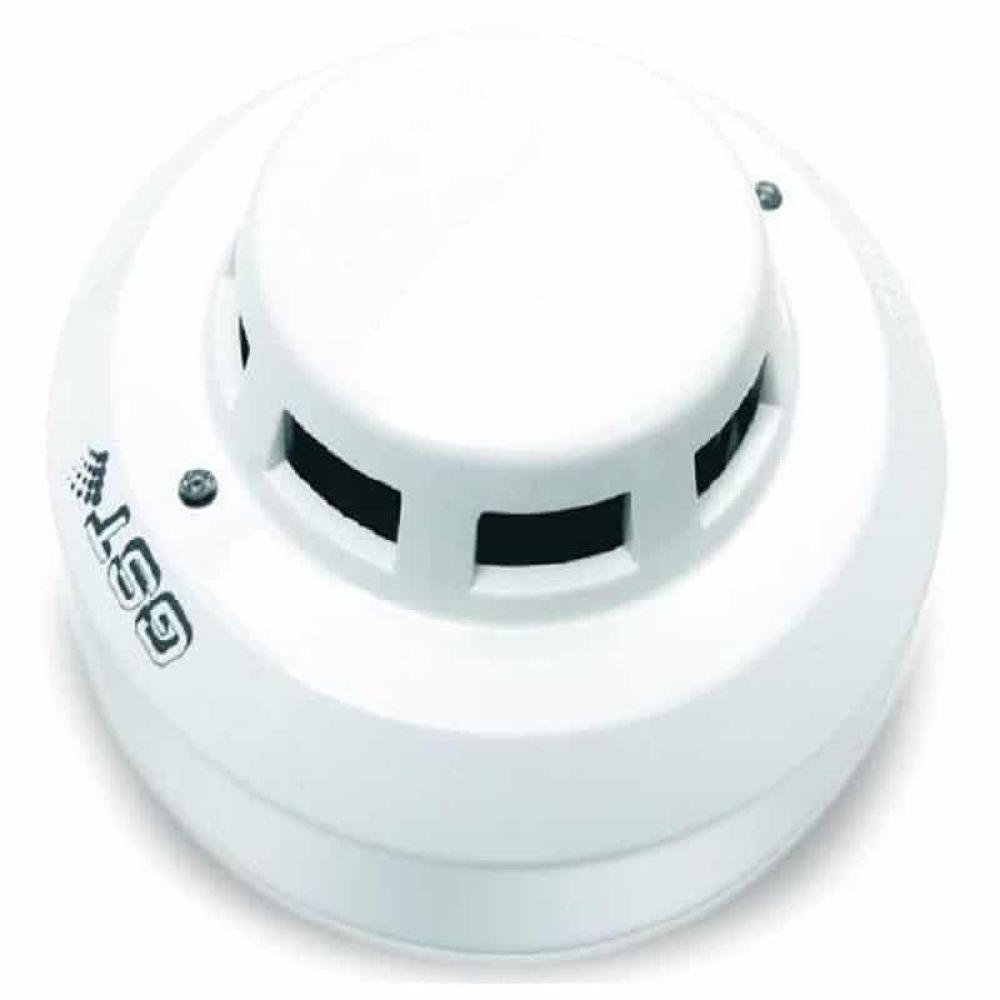

Description C-9102 Conventional Photoelectric Smoke Detector is non-addressable. Used together with end of line unit, it can connect with compatible control panels to process detection signals. It shows fire alarm by LED indicators and transmits the fire signal to the control panel. Using infrared scattering technology, the smoke density can be detected. The detector receives very weak infrared light under normal smokeless condition. If smoke particles enter the chamber, the received light signal will increase by scattering. When smoke density reaches a pre-set level, the detector will alarm out. In order to reduce interference and power consumption, the emitting circuit works in pulse mode to prolong the life of IR LED.

Features and Benefits :

1. Sensing chamber for exceptional dust proof ability

2. Built-in Remote Indicator Output

3. Twin LED for 360º vision

4. Low profile design

Technical Specifications :

• Standard: EN54-part7

• Approval: LPCB,UL,CE

• Protection rating: IP 32

• Detecting Range:80m² at 6-12meter ceiling height; and 60m² below 6meter

• • Operating voltage: 24Vdc (9Vdc to 24Vdc) polarized

• Operating Current: Stan by: 0.1mA; Alarm:8mA

• Operating temperature: -10°C to +50°C

• Relative humidity: 95%

• Application: Indoor use

• Material and color: ABS, off-white

• Wiring: 1 pair polarized

• Dimensions: diameter 10cm; height 5cm
