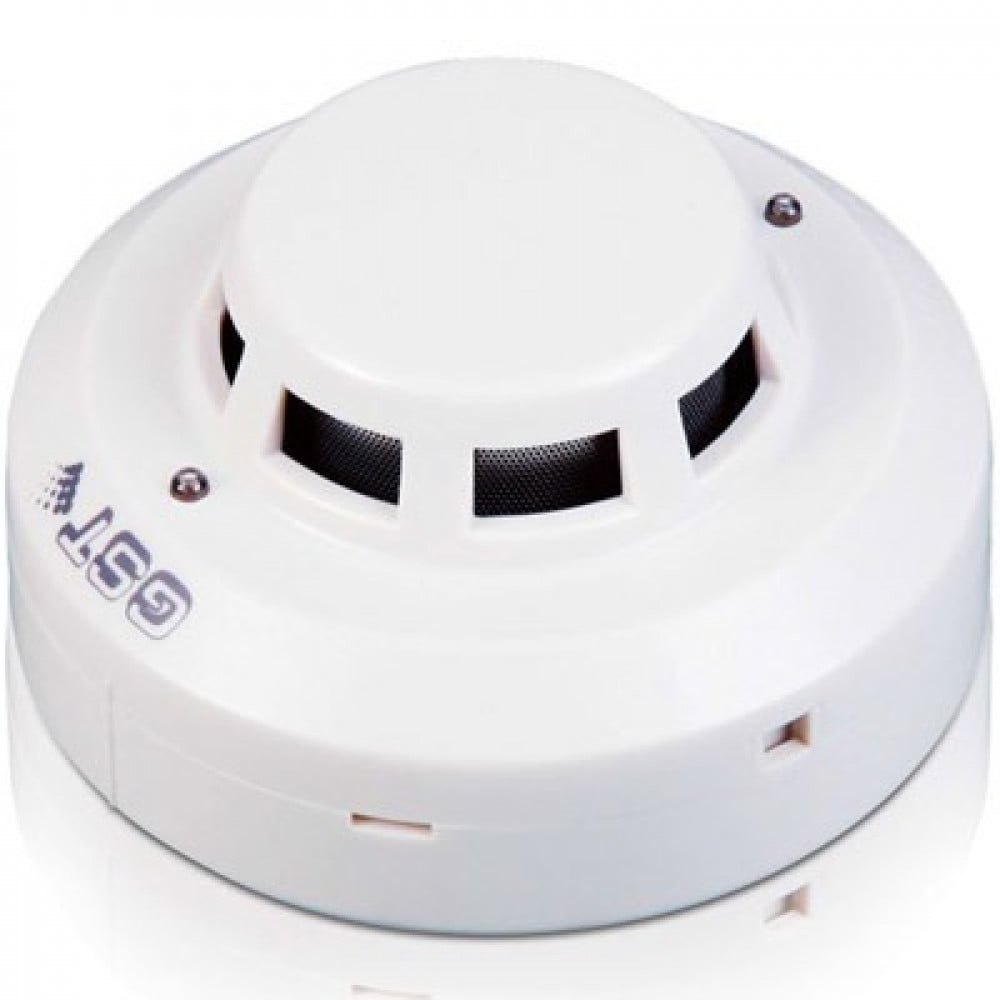

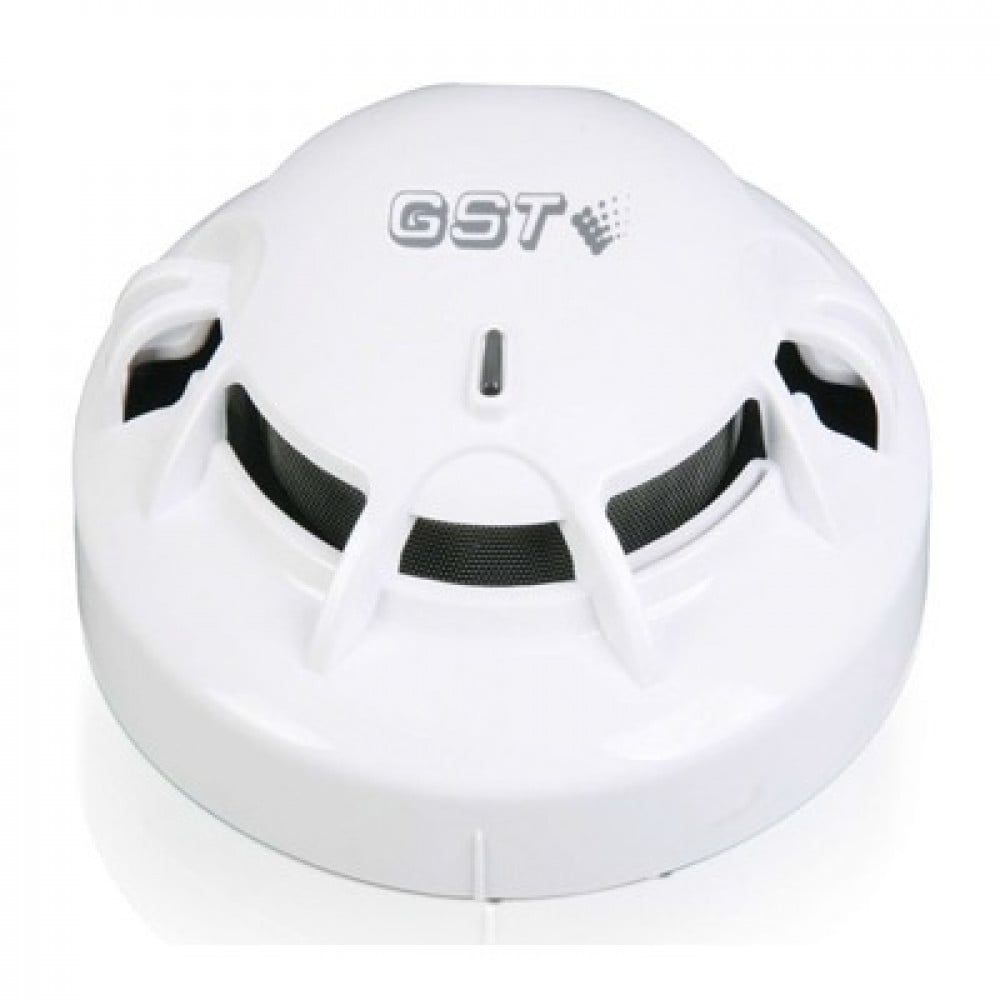

The GST I-9102 Intelligent Photoelectric Smoke Detector is a sophisticated addressable fire alarm device designed to collaborate seamlessly with GST intelligent fire alarm control panels in the construction of a robust fire detection system. This detector utilizes LED indicators to visually indicate fire alarms and transmits fire signals to the control panel. It employs infrared scattering technology to detect smoke density.
The GST I-9102 detector is highly sensitive, capable of receiving minute levels of infrared light in normal smokeless conditions. When smoke particles enter the chamber, the received light signal intensifies due to scattering. Once the smoke density surpasses a predefined threshold, the detector triggers an alarm. To minimize interference and power consumption, the emitting circuit operates in a pulse mode, thereby extending the lifespan of the IR LED.
Designed for diverse environments such as restaurants, hotels, office buildings, schools, banks, warehouses, libraries, computer rooms, and power plants, among others, this detector can be individually addressed on-site using the P-9910B programmer. Detailed instructions can be found in the P-9910B Hand Held Programmer Installation and Operation Manual.
Features / Specifications:
- Twin LED design for complete 360° visibility
- On-site electronic addressing capability
- In-built microprocessor stores up to 14 historical data points
- Drift compensation ensures adaptability to changing environments
- Self-diagnostic functionality for enhanced reliability
- Optional remote indicator output
- Conforms to the EN 54-7 standard
