Camera Details:
Model: DS-2CE16D0T-EXIPF

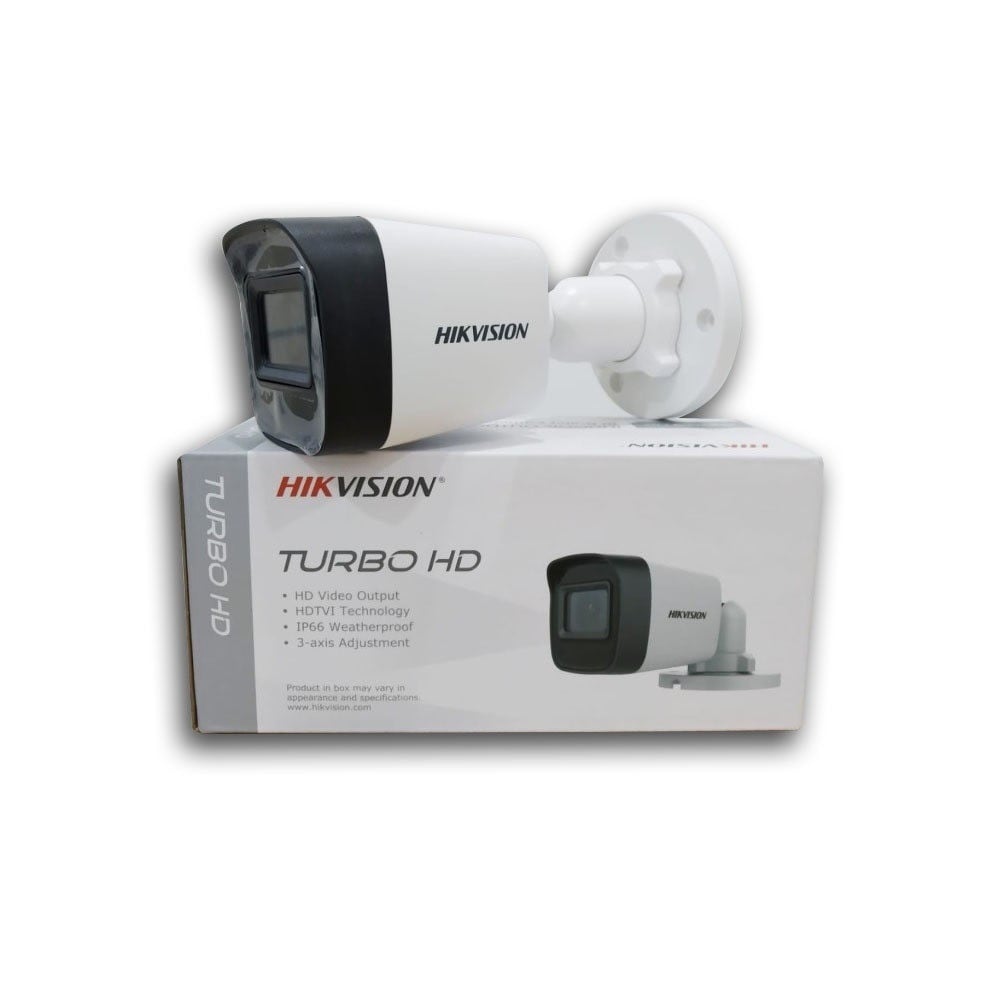

Product Name: 2MP Outdoor EXIR Fixed Mini Bullet Camera
Image Sensor: 2 MP CMOS
Signal System: PAL/NTSC
Resolution: 1920 (H) × 1080 (V)
Frame Rate:
- TVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- CVBS: PAL/NTSC
Minimum Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:
- PAL: 1/25 s to 1/50,000 s
- NTSC: 1/30 s to 1/50,000 s
Lens Options:
- 2.8 mm, 3.6 mm Fixed Lens
Field of View:
- 2.8 mm:Horizontal FOV: 96.5°
- Vertical FOV: 48.9°
- Diagonal FOV: 120.5°
- 3.6 mm:Horizontal FOV: 76.9°
- Vertical FOV: 40.6°
- Diagonal FOV: 92.0°
Lens Mount: M12
Day & Night: IR Cut Filter
WDR (Wide Dynamic Range): Digital WDR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Image Mode: STD/HIGH-SAT
AGC: Yes
Day/Night Mode: Auto/Color/BW (Black and White)
White Balance: Auto
AE (Auto Exposure) Mode: BLC;Global;DWDR
Noise Reduction: 2D DNR
Language: English
Functions: Sharpness;Smart IR;Mirror;Brightness
Interface:
- Video Output: Switchable TVI/AHD/CVI/CVBS
General Details:
Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply: 12 VDC ± 25%
Consumption: Max. 3.3 W
Protection Level: IP67
Material: Plastic
IR Range: Up to 20 m
Communication: HIKVISION-C
Dimensions: 138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" × 2.278")
Weight: Approx. 145 g (0.32 lb.)
