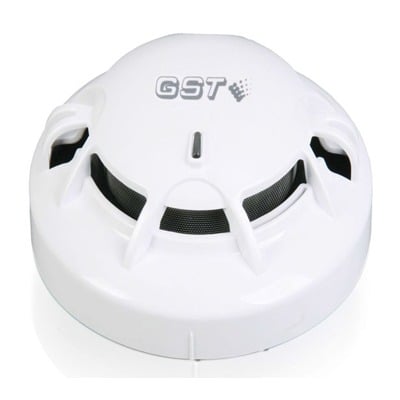

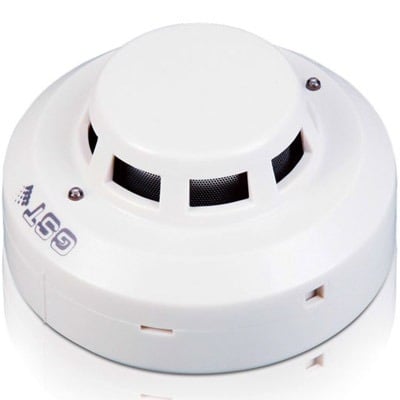

The GST I-9102 Intelligent Light Smoke Detector is a sophisticated addressable device, designed to seamlessly collaborate with the intelligent controllers of GST type fire alarm systems to build a robust fire detection system. This device uses LED indicators to visually indicate fire alarms and transmits fire signals to the control panel. It uses optical reflection technology to detect smoke density.
The GST I-9102 smoke detector is highly sensitive, as it can receive weak infrared light levels in smokeless conditions. When smoke particles enter the room, the intensity of the light signal received by the scattering increases. Once the smoke density exceeds the predetermined limit, the detector triggers an alarm. To reduce interference and power consumption, the transmitting circuit operates in pulse mode, enhancing the lifespan of the infrared LED.
Designed for diverse environments such as restaurants, hotels, office buildings, schools, banks, warehouses, libraries, computer rooms, power plants, and more, it can be addressed site-level with the P-9910B programming device. Detailed instructions can be found in the P-9910B Hand Held Programmer Installation and Operation Manual.
Features/Specifications:
- Dual LED design for full 360° view
- Electronic Addressing on the Website
- Built-in microprocessor stores up to 14 historical data points
- Compensate for changes to adapt the device to environmental changes
- Self-diagnostic function for increased reliability
- Optional remote indicator output
- Conforms to EN 54-7
